Drop Down Safety Guard

dropdown-safety-guards-sb6000

OVERVIEW

The drop-down roller guard provides eye protection from grinding, welding and sanding operations. Operation is very simple via the pull strap which the operator pulls down. Once at the desired height a ratchet holds the safety shade in place. Once no longer needed, the operator gives the pull strap a slight pull in the roller safety shade rolls back up.

Request Price



dropdown-safety-guard-rolls

Shade Options

You can choose from several different safety shade colors. There are completely opaque non-see-through shades, completely clear shades, and semi- transparent shades for welding. All safety shades are fire retardant and are rated for 160F. For higher temperatures ask for our high temp shades.

Colors:

  • Tinted Smoke
  • Tinted Grey
  • Tinted Green
  • Tinted Blue
  • Tinted Orange
  • Tinted Yellow
  • Opaque Yellow
  • Opaque Black
  • All Clear (Not for welding)

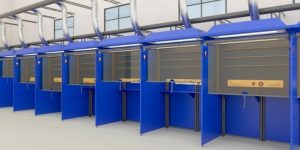

dropdown-safety-partitions

Tinted and Clear Shades

Some applications require a line of sight so the associate can see what they are doing. Using a completely clear or a tinted shade allows you to see through the shade. The clear roll down safety guarding provides 100% line of sight. However, it will not protect the user’s eyes from indirect welding operations. The tinted roll down welding shades are also not designed for direct viewing of welding operations. A welding helmet would be required for that. However, it does provide for indirect line of sight from welding applications which blocks the UV rays.

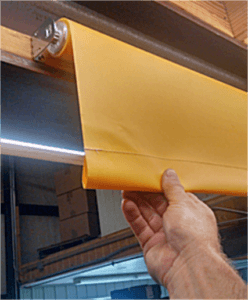

dropdown-safety-guard-material

Dimensions

  • Roller diameter: 1.375”
  • Bracket height: 1.375”
  • Min shade width: 20″
  • Max shade width: 96″
  • Max shade height: 96″

Features

  • Weight rod inside bottom pocket
  • Hand cut-out for solid grip
  • Pull strap for taller shades
  • Industrial ratchet for multi-lock positions
  • Rated for thousands of cycles

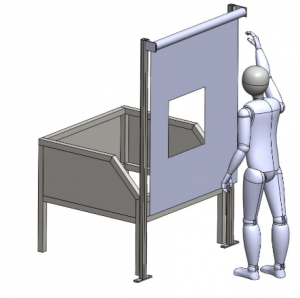

dropdown-portable-safety-guard

Common Applications

    • Welding booths safety guard
    • Industrial work stations drop down shield
    • Garage and workshops roller guarding
    • Automation weld flash roller shade guard
    • CNC pull down safety shade

And many more…
