Roll Up Machine Guard

Roll-Up-Machine-Guard-industrial

CUSTOM MADE ROLLERS

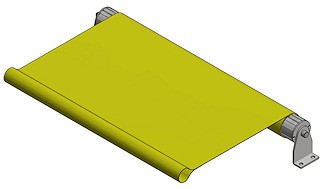

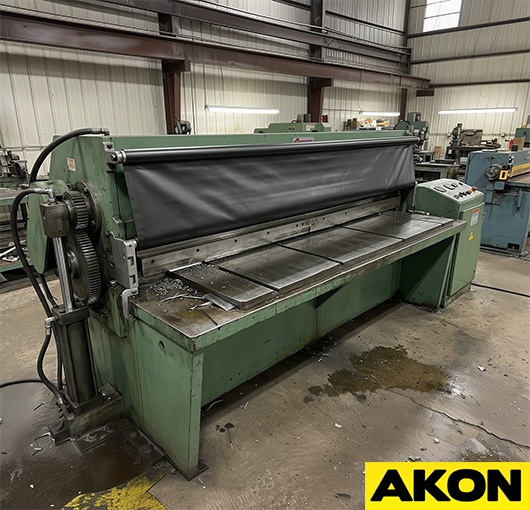

The Roll Up Machine Guard helps prevent operators from getting their hands or feet inside of the machines which they are working near. The guarding also contains flying debris which could potentially injure someone. Rated for both low and high duty applications the retractable machine covers have countless uses.

Custom Made For All Applications

industrial-roll-up-guard

Custom Made to Order

Each industrial roller guard is designed per application. We take into consideration the environment, duty cycle, and intended use to make sure we provide the correct roller. The roll up guards come in 3 different roller assemblies and about 6 different shade materials.

roll-up-machine-guarding

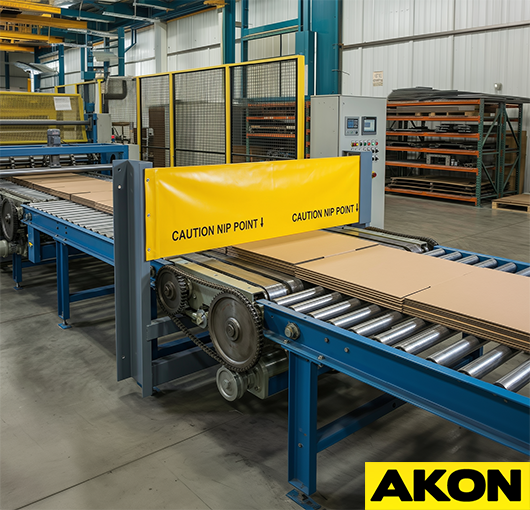

Wide Variety of Applications

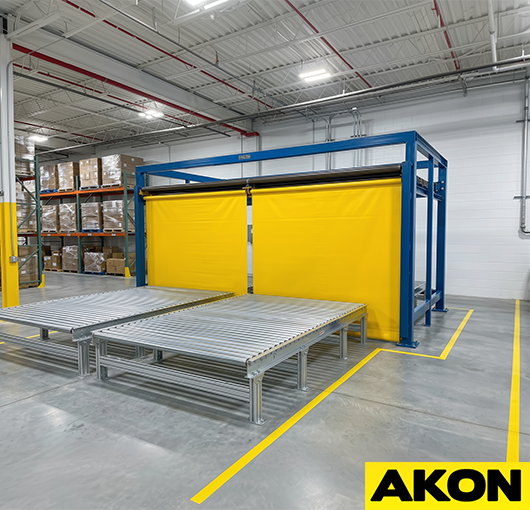

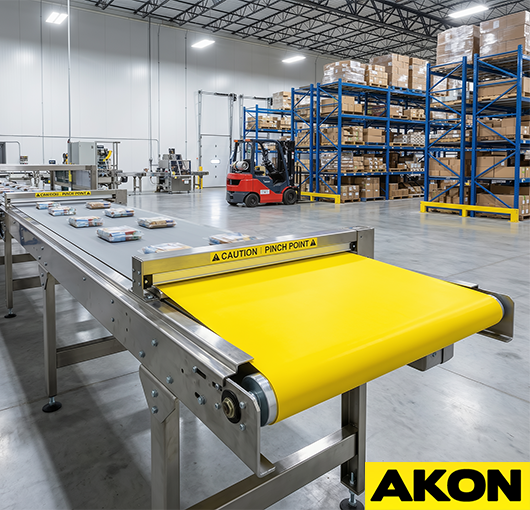

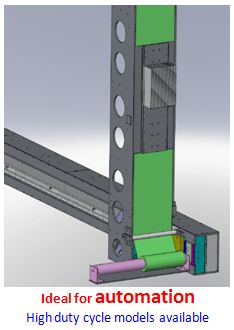

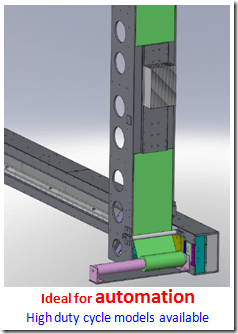

These guards un-roll as the machine raises, and they retract as the machine lowers. The roll up safety guards can be attached in a variety of methods and have potential uses for countless applications. They also provide a very small foot print which is ideal where a traditional bellows fold would be too large.

retractable-machine-guarding

Industrial Grade

Our retractable safety rollers are fabricated using the best roller springs to eliminate rollers which may fall apart in the field due to spring exhaustion. Your industrial roller guard will be designed and fabricated to be used in the harshest conditions which are present in most industrial applications.

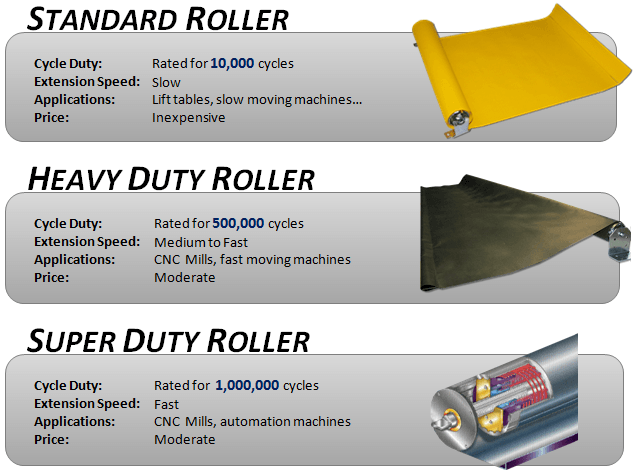

Roller Models

roll-up-machine-guards

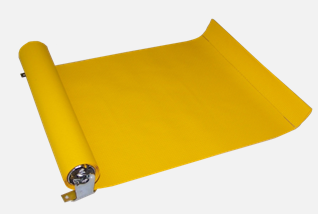

STANDARD DUTY

For slower moving components the standard duty roller guard is ideal. This roller is a reliable economical solution for any applications where the duty cycle is within about 10,000 cycles. Used on equipment and machines that will not cycle consistently.



Specifications

  • Duty Cycle - At least 10,000 cycles
  • Extending Speed - Slow, moderate
  • Tube Diameter - 2.375" and 1.75" OD
  • End of Shade - Pocket for flat steel bar
  • Mounting Legs - Included & removable
  • Min. Width - 21"
  • Max. Extension - 95"
  • Price - $
industrial-roller-shade-heavy-duty

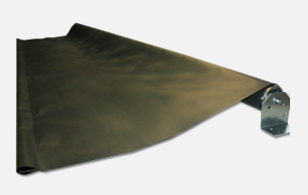

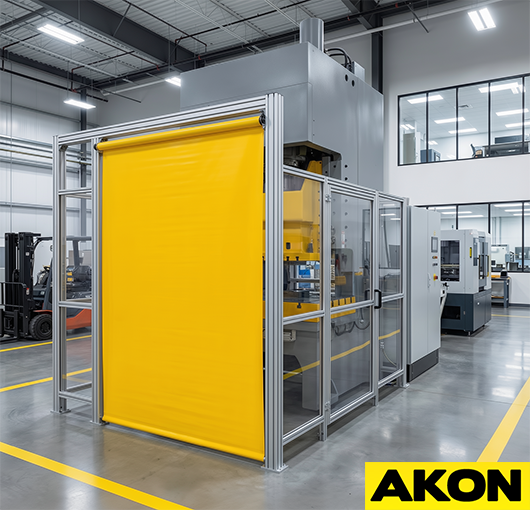

HEAVY DUTY

The most commonly installed roller guard AKON supplies. Designed for at least 500,000 cycles and featuring a robust fabrication. Commonly used by OEM's and manufacturing plants for all types of guarding. Also ideal for tight spaces when using the 1" roller tube.



Specifications

  • Duty Cycle - At least 500,000 cycles
  • Extending Speed - Slow, moderate, fast
  • Tube Diameter - 1", 1.5", 2", 2.5", 3" OD
  • End of Shade - Pocket for flat steel bar
  • Mounting Legs - Included & removable
  • Min. Width - 6"
  • Max. Extension - 180"
  • Price - $
roll-up-guards-super-duty

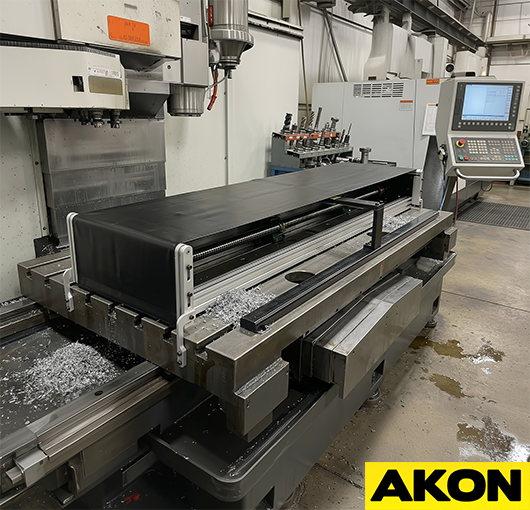

SUPER DUTY

Rated for at least 1,000,000 cycles this industrial roller guard is designed for applications where high speeds and frequent to non-stop cycling is present. Commonly used with automation and robotic work cell operations that are in constant motion.



Specifications

  • Duty Cycle - At least 1,000,000 cycles
  • Extending Speed - Slow, moderate, very fast
  • Tube Diameter - 2", 2.5", 3" OD
  • End of Shade - Pocket for flat steel bar
  • Mounting Legs - Included & removable
  • Min. Width - 6"
  • Max. Extension - 180"
  • Price - $

Optional Features

roller-machine-guards

High Temp Shades

Standard material is 18oz vinyl. However, for any environment hotter than 140 degrees Fahrenheit we use materials that can withstand the higher temperatures. Ratings of up to 1200°F.

roll-up-machine-guarding

Shade Placement

If you require a very long extension then we might have to use a roller that is wider than the shade to accommodate the internal spring. If this is necessary then we can offset the shade anywhere on the roller as shown here.

machine-roller-guard-case

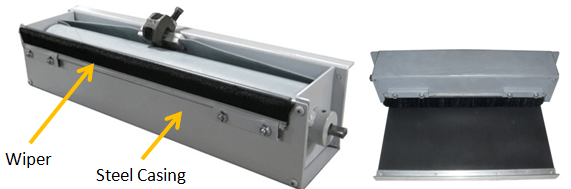

Steel Case

The steel case surrounds the roller and protects if from debris and accidental contact with other objects that might damage it. This can also feature a brush wiper. Please note that this triples the cost of the unit.

clear-shades1

All Clear Shades

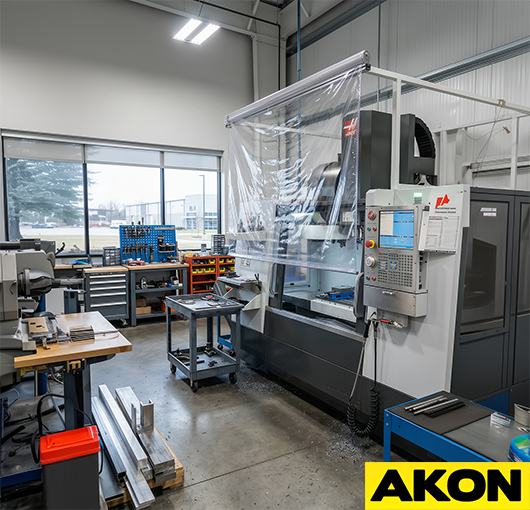

Some applications require a line of sight into the machine when the industrial roller shade is extended. We can provide an all clear material or a standard shade with a view port window.

shade-mount-styles

Shade Mounts

The most common end of shade mount is a pocket with a flat steel bar that you bolt to your machine. Other styles are shown above. These are only available on the heavy and super duty models.

Materials

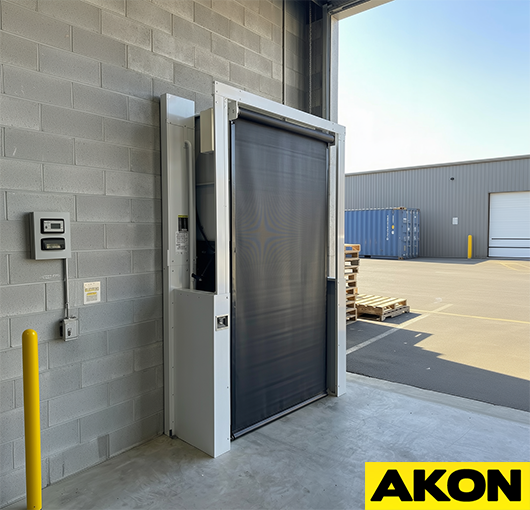

VINYL

Overview: The standard material we quote for
industrial roll up guards. Used in the vast majority
of applications as it is very strong and reinforced
with a polyester scrim. The most economical
and ideal material unless you have high heat or
a high abrasion environment.

Material: 18oz Vinyl
Color: Yellow, Black, Blue, Red and Green
Chemical Resistance: Yes
Heat Range: Up to 150°F
Price: $

NEOPRENE

Overview: A step up from Vinyl is the neoprene
line of shades. This material provides excellent tear
strength and superior resistance to abrasion. It
also has a higher heat rating at 212° F

Material: 16 oz Neoprene Coated Nylon Fabric
Color: Black
Chemical Resistance: Yes
Heat Range: Up to 212°F
Price: $

ALL MATERIALS

For General Purpose Applications

18 oz Vinyl Coated Polyester | .024" | 150° F

For CNC Applications

16 oz Neoprene coated nylon | .019" | 212° F | For light protection (coolants, chips)
18 oz neoprene coated nylon | .018" | 212° F | For light protection (coolants, chips)
33 oz neoprene coated nylon | .033" | 212° F | For moderate protection (coolants, chips)
40 oz neoprene coated nylon | .039" | 212° F | For heavy protection (coolants, chips, hot chips)
60 oz hypalon coated nylon | .060" | 212° F | For heavy protection (coolants, chips, hot chips)

For High Heat Applications

Hypalon Coated Nylon | 300° F
Silicone/Neoprene Coated Fiber Glass |480°F
Teflon Coated Fiber Glass | 500° F
Silicone Coated Fiber Glass | .016" | 500°F
Teflon Impregnated/Coated Fiberglass | .018" | 550°F
Silicone Impregnated Fiberglass | 550° F
Aluminum Coated Fiberglass | .024" | 1100° F
Aluminized Kevlar Hi-Temp Fabric | .018" | 1200°F
